ZSI - Beta Hydraulic Clamps T2009S, Twin Series 1/4" Pipe, Steel Polypropylene

Product Details

Heavy-duty vibration-damping pipe and tube support. The ZSI T2009S is a steel Twin Beta Clamp welded weld-plate assembly, sized for 1/4" Pipe, with a green polypropylene cushion that absorbs shock, noise, and vibration on hydraulic and industrial lines.

Specifications

• Brand: ZSI
• Part Number: T2009S
• Series: Twin Beta Clamp
• Group: T2
• Clamp Size: 1/4" Pipe
• Configuration: Welded
• Material: Steel
• Cushion: Green Polypropylene
• Bolt: 5/16"-18 x 1-3/8"
• Tightening Torque: 9 ft-lb (12 Nm)
• Max Pipe Slip Load: 472 lbf
• Working Pressure: up to 1,500 PSI
• Temperature Range: -22°F to +194°F
• Mounting: Weld plate
• Origin: Made in USA
• Quantity: 1 clamp assembly

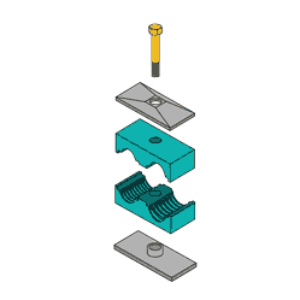

Upper and lower clamp halves are identical. Ribs in the clamp bore absorb axial shock and vibration. Clamp both sides of any bend; refer to ZSI spacing guidance for run support.
