ZSI - Beta Hydraulic Clamps, SM1008S, Single Series, 8mm Tube, Steel Polypropylene

ZSI - Beta Hydraulic Clamps, SM1008S, Single Series, 8mm Tube, Steel Polypropylene

by ZSI
Save 20% Save 20%
$ 4.89
$ 4.89 - $ 4.89
$ 4.89
$ 3.89
$ 3.89 - $ 3.89
$ 3.89
Request a Quote (Bulk & Dealer Orders)

Quick Specs

BrandZSI
SeriesStandard
TypeClamp
Body Size8mm"
MaterialSteel
ColorGreen

Product Details

Heavy-duty vibration-damping pipe and tube support. The ZSI SM1008S is a steel Standard Beta Clamp welded weld-plate assembly, sized for 8mm Metric, with a green polypropylene cushion that absorbs shock, noise, and vibration on hydraulic and industrial lines.

Specifications

  • Brand: ZSI
  • Part Number: SM1008S
  • Series: Standard Beta Clamp
  • Group: S1
  • Clamp Size: 8mm Metric
  • Configuration: Welded
  • Material: Steel
  • Cushion: Green Polypropylene
  • Bolt: 1/4"-20 x 1-1/4"
  • Tightening Torque: 6 ft-lb (8 Nm)
  • Max Pipe Slip Load: 247 lbf
  • Working Pressure: up to 1,500 PSI (103 bar)
  • Temperature Range: -22°F to +194°F
  • Mounting: Weld plate
  • Origin: Made in USA
  • Quantity: 1 clamp assembly

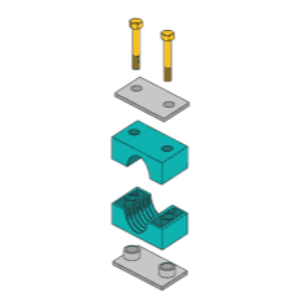

Upper and lower clamp halves are identical. Ribs in the clamp bore absorb axial shock and vibration. Clamp both sides of any bend; refer to ZSI spacing guidance for run support.
