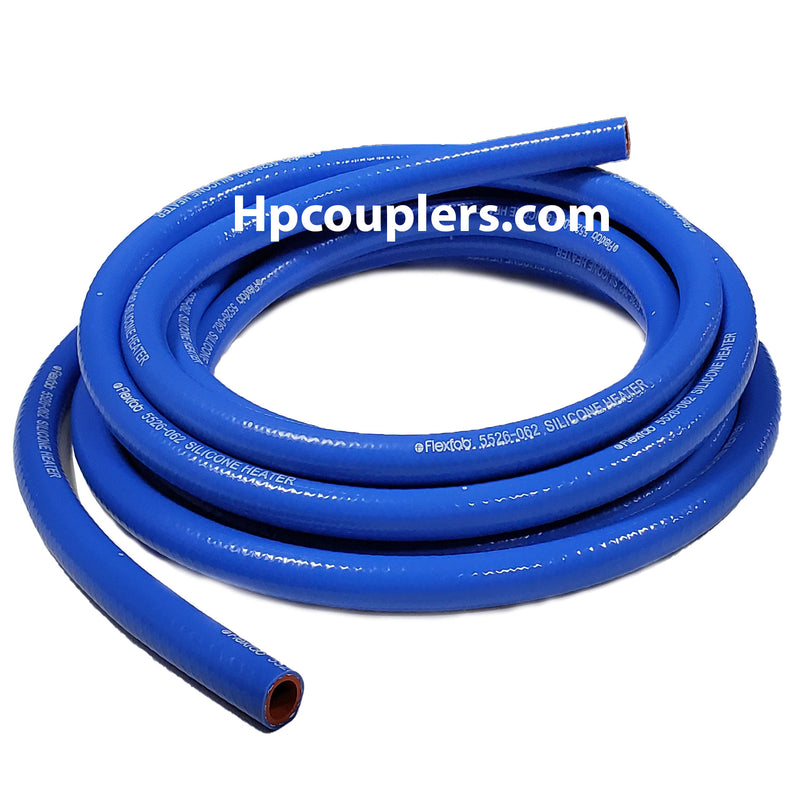

Flexfab 5526-031, 5/16" x 50 ft Blue Silicone Heater Hose, .31"

Flexfab 5526-031, 5/16" x 50 ft Blue Silicone Heater Hose, .31"

by Flexfab
$ 202.49 - $ 202.49
$ 202.49
$ 202.49 - $ 202.49
$ 202.49
  • FlexFab Series: 5526
  • Part Number: 5526-031
  • Inside Diameter (ID): 0.31" (8mm)
  • Outside Diameter (OD): 0.64" (16mm)
  • Hose Length: 50'
  • Bend Radious: 5 times the Hose ID
  • Wall Thickness: .140" / .170"
  • Weight LB/FT: 0.128
  • Actual Burst Pressure - PSI: 310
  • SAE J20 R3 Class A - PSI: 250
  • TMC RP303B Class 1 Grade II - PSI: 125
  • Extreme temp range: -65F to +350F (-54C to +260C)
  • Material: Blue Cover, with Nylon Fiber Reinforcement
  • Construction: Silicone hose with 1-ply of Nylon Fiber
