ZSI - Beta Hydraulic Clamps, S3016S, Single Series, 1" Pipe, Steel Polypropylene

Product Details

Heavy-duty vibration-damping pipe and tube support. The ZSI S3016S is a steel Standard Beta Clamp welded weld-plate assembly, sized for 1" Tube, with a green polypropylene cushion that absorbs shock, noise, and vibration on hydraulic and industrial lines.

Specifications

• Brand: ZSI
• Part Number: S3016S
• Series: Standard Beta Clamp
• Group: S3
• Clamp Size: 1" Tube
• Configuration: Welded
• Material: Steel
• Cushion: Green Polypropylene
• Bolt: 1/4"-20 x 1-1/2"
• Tightening Torque: 6 ft-lb (8 Nm)
• Max Pipe Slip Load: 315 lbf
• Working Pressure: up to 1,500 PSI (103 bar)
• Temperature Range: -22°F to +194°F
• Mounting: Weld plate
• Origin: Made in USA
• Quantity: 1 clamp assembly

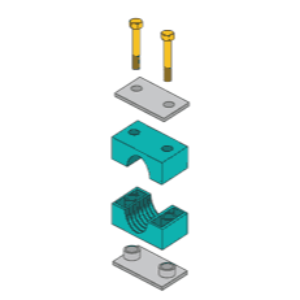

Upper and lower clamp halves are identical. Ribs in the clamp bore absorb axial shock and vibration. Clamp both sides of any bend; refer to ZSI spacing guidance for run support.
