ZSI - Beta Hydraulic Clamps, H4017S, Heavy Single Series, 3/4" Pipe, Steel Polypropylene

Product Details

Heavy-duty vibration-damping pipe and tube support. The ZSI H4017S is a steel Heavy Duty Beta Clamp welded weld-plate assembly, sized for 3/4" Pipe, with a green polypropylene cushion that absorbs shock, noise, and vibration on hydraulic and industrial lines.

Specifications

• Brand: ZSI
• Part Number: H4017S
• Series: Heavy Duty Beta Clamp
• Group: H4
• Clamp Size: 3/4" Pipe
• Configuration: Welded
• Material: Steel
• Cushion: Green Polypropylene
• Bolt: 3/8"-16 x 2-1/4"
• Tightening Torque: 9 ft-lb (12 Nm)
• Max Pipe Slip Load: 652 lbf
• Working Pressure: over 1,500 PSI (103 bar)
• Temperature Range: -50°F to +275°F
• Mounting: Weld plate
• Origin: Made in USA
• Quantity: 1 clamp assembly

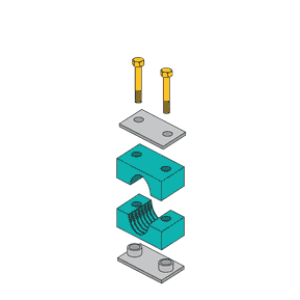

Upper and lower clamp halves are identical. Ribs in the clamp bore absorb axial shock and vibration. Clamp both sides of any bend; refer to ZSI spacing guidance for run support.
